Photoelectrochemical chamber PECell

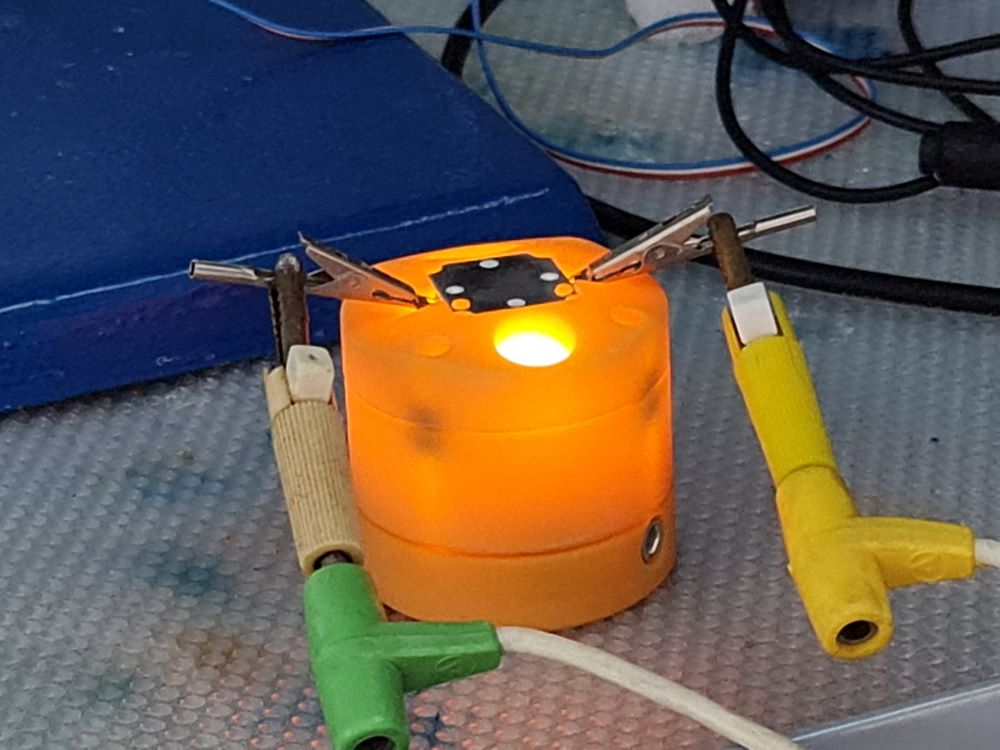

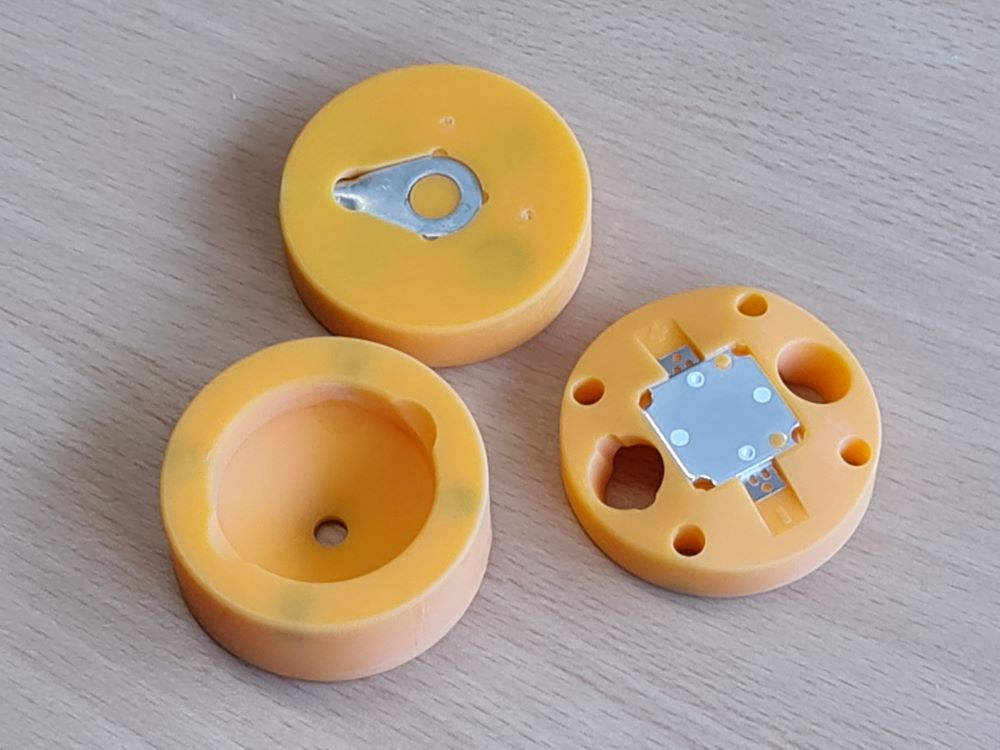

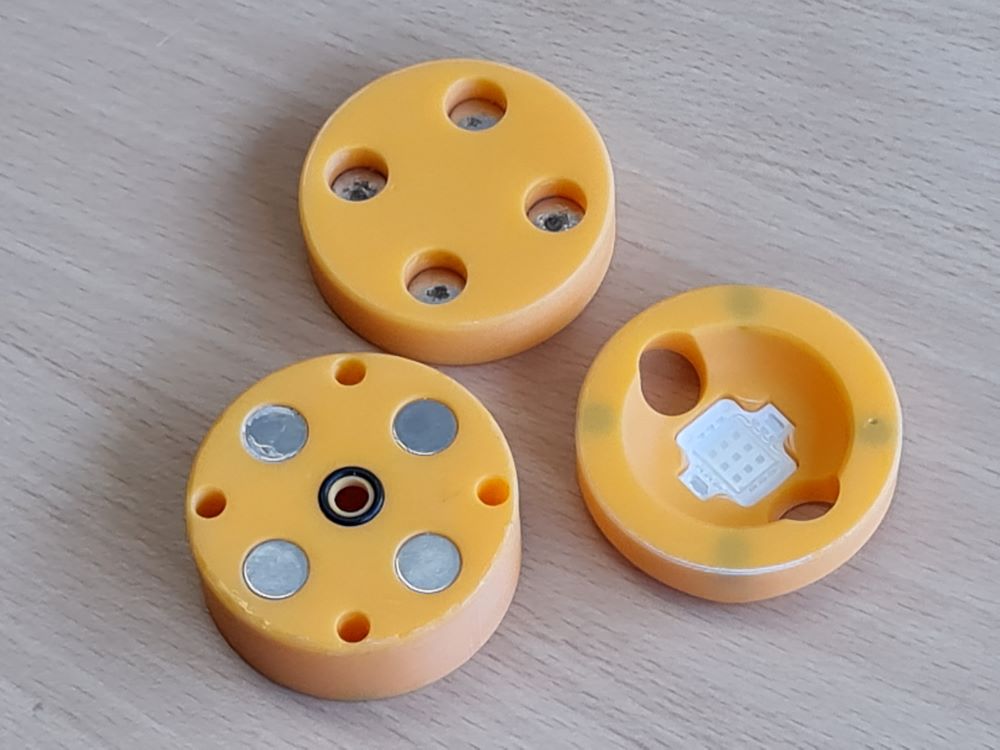

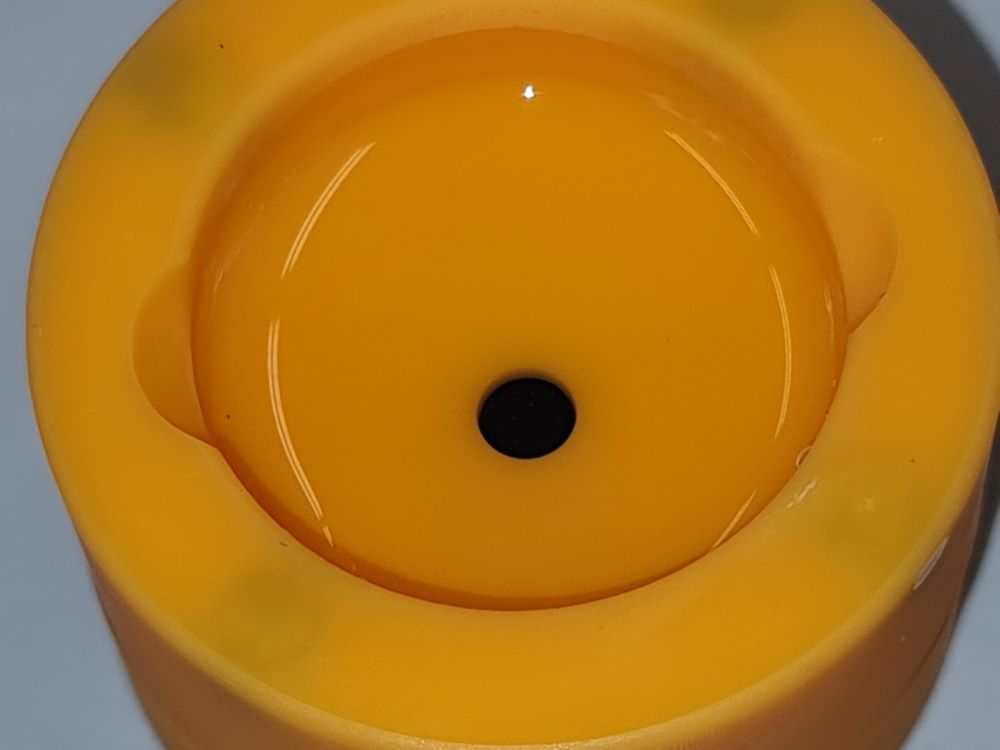

The PECell photoelectrochemical chamber is intended for measuring the photoelectrochemical properties of thin layers deposited on a substrate with dimensions of 1×1 cm and a height ranging from 600 µm to 700 µm. PECell consists of three parts: Lower part – sample holder with connector; Middle part – electrolytic chamber; Upper part – led panel and holder for reference and auxiliary electrode. All three parts are connected by magnets. The lower part contains the connector for the working electrode. The volume of the chamber for the electrolyte is 5 mL and the maximum power of the UV-A LED with a wavelength of 365 nm is 10W.
